# **HIGH SPEED DOOR**
**Experience the superior performance of TDK High-Speed Doors, meticulously engineered to deliver rapid operation, utmost safety, and unparalleled durability. Crafted with innovative structural design and powered by advanced high-frequency microcomputer drive units, our doors epitomize excellence in modern warehouse solutions, perfectly aligned with the requirements of environmental sustainability. Elevate your operational efficiency with TDK High-Speed Doors, where quality meets innovation.**
[Contact Us](https://www.tdkdoors.com/contact)

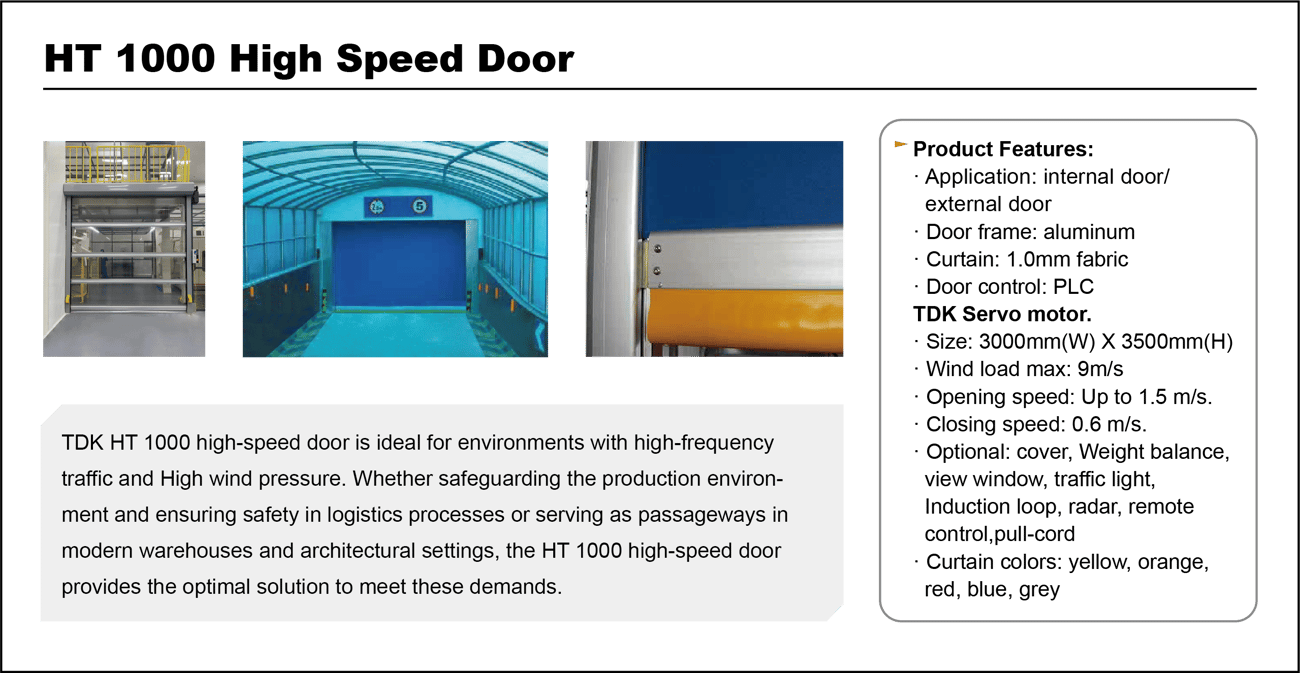

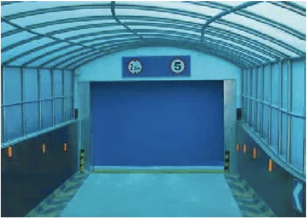

## **HT 1000 High Speed Door**
---
Product Features:
·Application: internal door/ external door
·Door frame: aluminum
·Curtain: 1.0mm fabric
·Door control:PLC
TDK Servo motor.
·Size:3000mm(W) X3500mm(H)
·Wind load max: 9m/s
.Opening speed: Up to 1.5 m/s.
·Closing speed:0.6 m/s.
·Optional: cover,Weight balance, view window, traffic light,Induction loop, radar, remote control,pull-cord
·Curtain colors: yellow, orange, red, blue, grey
TDK HT 1000 high-speed door is ideal for environments with high-frequency traffic and High wind pressure.Whether safeguarding the production environ- ment and ensuring safety in logistics processes or serving as passageways in modern warehouses and architectural settings, the HT1000 high-speed door provides the optimal solution to meet these demands.
---
## **HT 2000 High Speed Door**
---
Product Features:
·Application: internal door
·Door frame: aluminum
·Curtain:2.0mm fabric
·Door control: PLC
TDK Servo motor.
·Size: 4000mm(W) X 4000mm(H)
·Wind load max: 9m/s
·Opening speed: Up to 1.5 m/s
·Closing speed:0.6 m/s
·Optional: cover, Weight balance, view window, traffic light,Induction loop, radar, remote control, pull-cord
·Curtain colors: yellow, orange, red, blue, grey
TDK HT2000 High-Speed Door, featuring a 2mm fabric panel that not only offers an attractive appearance but also ensures durability for years to come. With a single-piece aluminum extrusion frame track, this door operates simoothly, facilitating seamless opening and closing. Experience reliability and aesthetic appeal combined in the TDK HT2000 High-Speed Door, designed to exceed expectations without any hassle for years on end.
---

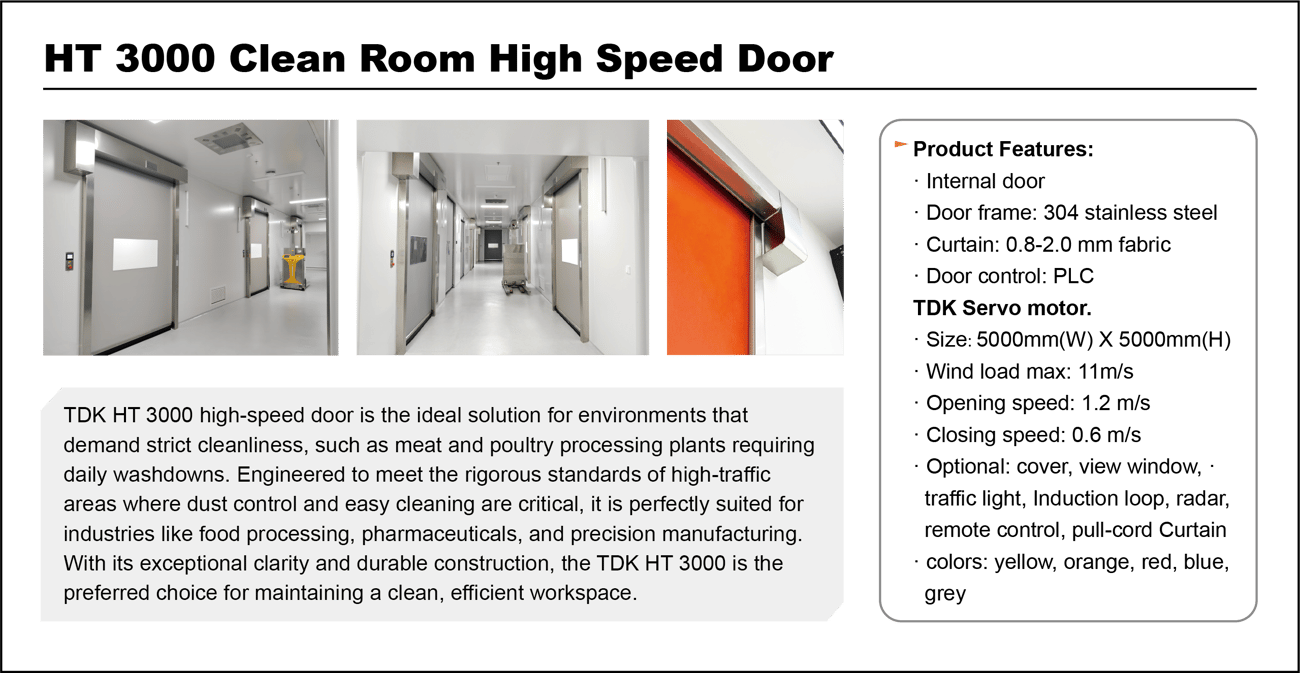

## **HT 3000 Clean Room High Speed Door**
---
Product Features:
·Internal door
·Door frame: 304 stainless steel
·Curtain: 0.8-2.0 mm fabric
·Door control:PLC
TDK Servo motor.
·Size:5000mm(W) X5000mm(H)
·Wind load max:11m/s
·Opening speed:1.2 m/s
·Closing speed:0.6 m/s
·Optional: cover, view window,. traffic light, Induction loop, radar, remote control, pull-cord Curtain
·colors: yellow, orange, red, blue, grey
TDK HT 3000 high-speed door is the ideal solution for environments that demand strict cleanliness, such as meat and poultry processing plants requiring daily washdowns. Engineered to meet the rigorous standards of high-traffic areas where dust control and easy cleaning are critical, it is perfectly suited for industries like food processing, pharmaceuticals, and precision manufacturing. With its exceptional clarity and durable construction, the TDK HT 3000 is the preferred choice for maintaining a clean, efficient workspace.
---

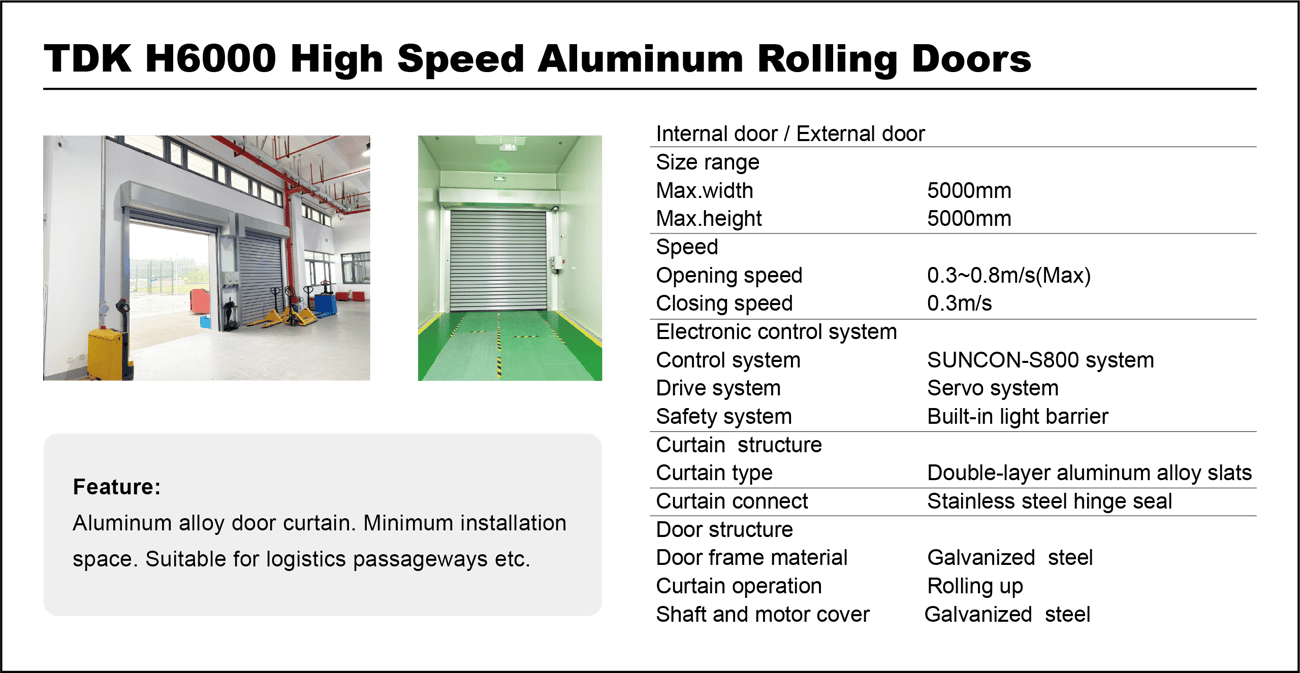

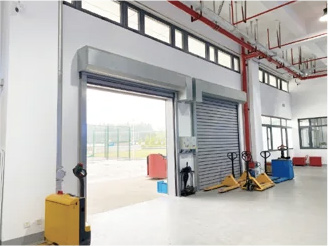

## **TDK H6000 High Speed Aluminum Rolling Doors**
---
Internal door / External door
Size range
Max.width 5000mm
Max.height 5000mm
Speed
Opening speed 0.3~0.8m/s(Max)
Closing speed 0.3m/s
Electronic control system
Control system SUNCON-S800 system
Drive system Servo system
Safety system Built-in light barrier
Curtain structure
Curtain type Double-layer aluminum alloy slats
Curtain connect Stainless steel hinge seal
Door structure
Door frame material Galvanized steel
Curtain operation Rolling up
Shaft and motor cover Galvanized steel
Feature:
Aluminum alloy door curtain. Minimum installation space. Suitable for logistics passageways etc.
---
## **High Speed, Spiral,Rigid Roll up Door**
---
With an opening speed of up to 60 inches per second, TDK HSR door offers the speed you need for high-traffic openings. Rigid, aluminum foam panel construction saves energy in your building.
Atrractive looking TDK HSR spiral roll up door is great for all kinds of commercial, institutional, as well as industrial applications.Because its powder coating aluminum is corrosion resistant , the door finish can last for many years under even the worst weather conditions.
Model Name
·TDK HSR
Size and Dimensions
·Up to 20’W x 20’H
Safety
·Standard photo eyes
·Electronic reversing edge
·Mechanical lever on the side column allows the door to be opened at power failure.
Available Options
·Aluminum non-lnsulated panel
·Window
·60mm and 80mm insulated panel
·Hood and motor covers
Warranty
·One year limited warranty
High Security -Rigid, aluminum foam Door panel and optional locking system provides security.
Open Fast - Opening speed up to 60 inches per spcond.
Low Noise - The plastic roller travels inside of an aluminum door track at extremely low noise.
Smooth Open and Close -With soft acceleration starts and Deceleration stops, smooths out routine opening and closing.
Energy Saving -Aluminum insulated foam panel, along with a durable rubber gasket, provid a 100%seal against dust pollution and inclement weather.
---
